HRC Racing - HRC68160HVBL
Servos 87.99 EUR

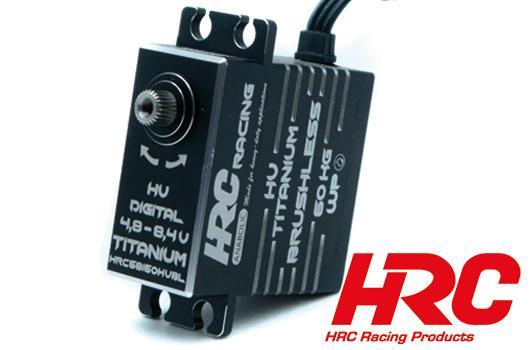

HRC Racing - HRC68160HVBL - Servo - Digital - HV High Torque - 40x37x20mm - 60kg/cm - Brushless - Titanium Gear - Waterproof - Double Ball Bearing
Servo - Digital - HV High Torque - 40x37x20mm - 60kg/cm - Brushless - Titanium Gear - Waterproof - Double Ball Bearing
The HRC RACING HRC68160HVBL servo was specially developed for use under high loads. The focus is on power and precision. The HRC68160HVBL servo is the ultimate choice for all R/C models that require a high actuating force (crawlers, trucks, large models). The high quality brushless motor combines extreme performance with high precision and long life. Integrated heavy-duty and low-noise HRC Titanium HSS gears bring you safely to your destination. A completely CNC-machined servo housing made of lightweight aluminum ensures optimum heat dissipation. This servo is also designed to be waterproof!



HRC RACING servos are renowned for their quality and performance. Every servo meets the high quality standards of HRC RACING. High precision and durability with the lowest weight to give your R/C model the best performance.



Specifications:



Voltage: 4.8 ~ 8.4 volts

Signal type: Digital

Motor type: Brushless

Gearbox: Titanium HSS

Housing: CNC Aluminum, Waterproof

Torque: 39.5kg/cm @ 4.8V // 44.5kg/cm @ 6.0V // 55.0 kg/cm @ 7.4V // 60.0kg/cm @ 8.4V

Speed: 0.18s/60° @ 4.8V // 0.15s/60° @ 6.0V // 0.14s/60° @ 7.4V // 0.13s/60° @ 8.4V

Supported: SANWA SHR



Dimensions: 40x37.5x20 mm

Weight: 74 gr

Case: Full aluminum case

Servo arm: 25 teeth

Cable: 22AWG

Cable length: 180mm JR

Connector: JR



Options:

HRC68160HVBL-A Replacement gearbox
