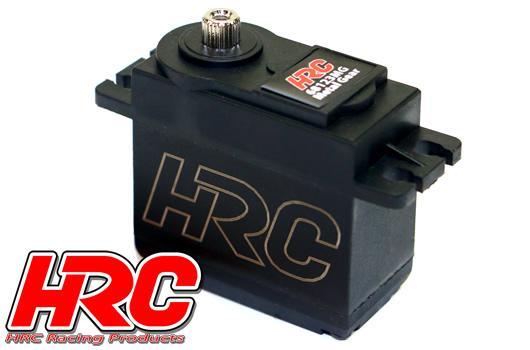

HRC Racing - HRC68123MG
Servos 29.99 EUR
HRC Racing - HRC68123MG - Servo - Analog - 40x38x20mm / 55.6g - 23kg/cm - Metal Gear - Waterproof - Double Ball Bearing
Servo - Analog - 40x38x20mm / 55.6g - 23kg/cm - Metal Gear - Waterproof - Double Ball Bearing
Analog Servo - Double Ball Bearing - Metal Gear.

Our new High Quality 68123MG Analog Metal Gear servo has been especially designed for the use in Crawler and Road Trucks as well as construction vehicles and is able to provide you entire satisfaction on many other usage.

An analog servo is usually better suited for static work (holding, standing) than a digitally controlled servo.
Our HRC68123MG is also designed to be very resistant (hard shocks, accidents) and therefore a very good alternative for R/C beginners.

Metal Gear, Double Ball Bearings, Heavy Duty servo horns, Heavy Duty servo cable... so many items that cost usually the double of the HRC 68123MG price !


Technical Datas:
Voltage: 4.8 ~ 6.0 Volts
Signal type: Analog
Bearings: Double Ball Bearings
Gear: Metal Gear
Torque: 20.5kg/cm @ 4.8V // 23kg/cm @ 6.0V
Speed: 0.16s/60° @ 4.8V // 0.14s/60° @ 6.0V
Dimensions: 40.5 x 38 x 20.2mm
Servo arm: 25 splines
Case: Nylon Fiber
Cable: 22AWG Heavy Duty
Cable length: 180mm JR
Connector: JR Plug
Servo - Analog - 40x38x20mm / 55.6g - 23kg/cm - Metal Gear - Waterproof - Double Ball BearingServo - Analog - 40x38x20mm / 55.6g - 23kg/cm - Metal Gear - Waterproof - Double Ball Bearing
Servo - Analog - 40x38x20mm / 55.6g - 23kg/cm - Metal Gear - Waterproof - Double Ball Bearing

 Print the articles datas (PDF)
